SJC  海水淡化機

(Sea water reverse osmosis system)

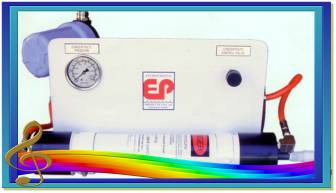

E-100SW

100GPD of reverse osmosis water(每日379L)

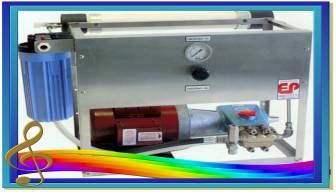

E-150SW

150GPD of reverse osmosis water(每日567L)

E-20SW(每日108TON)

28800GPD of reverse osmosis water

E-15SW(每日81TON)

21600GPD of reverse osmosis water

E-7SW(每日37.8TON)

10080GPD of reverse osmosis water
　

SYSTEM SPECIFICATIONS (890330)

MIDEL

PRODUCTION

R.O. FEED

PRESSURE

AFTER 3YEARS(PSI)

DIMENSIONS(in/cm)

WEIGHT

(lb/kg)

INLET

(in)

ELEMENT

QUANTITY

AND

SIZE(inches)

DESIGNED

RECOVERY

%

MOTOR

GPD

LPD

Height

Length

Width

PHASE

HP

60Hz

50Hz

E-100SW

100

379

905

10/25

15/38

20/50

50/23

3/8"

2.5"×14"(1)

6

1

3/4

1/2

E-150SW

150

567

776

18/46

50/127

24/61

142/64

3/4"

2.5"×21"(1)

5

1

1.5

1.5

E-350SW

350

1325

790

18/46

50/127

24/61

175/79

3/4"

2.5"×40"(1)

10

1

1.5

1.5

E-600SW

600

2271

774

18/46

50/127

24/61

230/104

3/4"

2.5"×40"(2)

18

1

1.5

1.5

E-1000SW

1000

3785

795

18/46

50/127

24/61

261/118

3/4"

2.5"×40"(3)

19

1

2

2

E-1500SW

1500

5678

885

18/46

50/127

24/61

275/125

3/4"

2.5"×40"(4)

25

1

3

3

E-3000SW

3000

11355

894

48/122

60/153

26/66

380/172

3/4"

4"×40"(3)

30

3

5

5

E-4500SW

4500

17034

856

48/122

60/153

26/66

400/181

1.5"

4"×40"(5)

30

3

7.5

7.5

E-6000SW

6000

22712

927

48/122

60/153

26/66

525/238

1.5"

4"×40"(7)

30

3

10

10

　

Standard Features

Optional Features

Applications

-Thin film R.O.Membranes

-Corrosion Resistant Triplex Plunger Pump

-Stainless Steel Tubing

 -Safety Pressure Relief Valve

-5 Micron Sediment Prefilter

-Stainless Steel Frame

-pressure Regulator

-Automatic Feed Water Shut

-off Valve (except on E-100SW)

-Low pressure shut-off switch

-Flow Meters

-Waste recycle valve

-Stainless Steel pump

-50Hz/220V motor

-Prefllter pressure gauges

-Automatic Permeate Flush

-TSD monitor

-High Rejection membranes

-12V or 24V D.C. Motor

　

-High Pressure Systems Up to

 1000Pal

-High TDS Feed Water Up to

 50000ppm

-High Rejection to 99%

-Corrosive Environments

TDS 50000ppm → 300ppm

　

系統一

1500G-SW + RO + O3 SYSTEM ：
sea water and arrive the best standard that drinks the water of growing and is allocated in the following,

The 1st unit:

Deal with the sea water and arrive the best standard that drinks the water of growing and is allocated in the following,

PF- (Pretreatment ) is filtered and dealt with leadingly

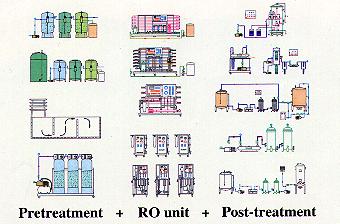

  • Options of SW/RO system

Pretreatment

*Automatic multimedia filter*Automatic activated carbon filter*Automatic softener*Automatic chemica l feeding unit*Cartridge pre-filter*Package unit for dialysis: MF, UF,RO, ( 1   5,20,30,50 beds)

The second unit
: SW- (SEA WATER-1500g ) desalinization host computer

　

MIDEL

PRODUCTION

R.O. FEED

PRESSURE

AFTER 3YEARS(PSI)

DIMENSIONS(in/cm)

WEIGHT

(lb/kg)

INLET

(in)

ELEMENT

QUANTITY

AND

SIZE(inches)

DESIGNED

RECOVERY

%

MOTOR

GPD

LPD

Height

Length

Width

PHASE

HP

60Hz

50Hz

E-1500SW

1500

5678

885

18/46

50/127

24/61

275/125

3/4"

(4)

25

1

3

3

The third unit:

RO (RESVERMOSIS-1500g ) grows and drinks the equipment +O3-15g/h sterilization host computer

  • Make of RO membranes and services
  • Make of RO membranes* DOW / Filmtec * Hydranautics * Fluid systems* Membrane replacement

Post-treatment

  • *UF filtration unit*UV disinfecting unit*0.2 um MF unit*Automatic nuclear grade mixed bed*Monitori ng unit of water quality*Ozone disinfecting unit

Control

*Standard control panel*PLC*User-friendly interface

Custom made RO system

*RO system made to customer's
  specifications or needs

Summarize: Must finish the equipment of three units , it is the best sea water that grows the system of drinking. If there is not first unit to strain in advance, the host computers of unit second will be stopped seriously by the alga. The third unit to bring 300 PPM down to 10 of TDS PPM can drink.

final price: USD $ 18450+15080 =33530
