1500G-SW + RO SYSTEM ：
sea water and arrive the best standard that drinks
the water of growing and is allocated in the following,
The 1st unit:
Deal with the sea water and
arrive the best standard that drinks the water of growing and is
allocated in the following,
PF- (Pretreatment ) is filtered
and dealt with leadingly
Options of SW/RO
system

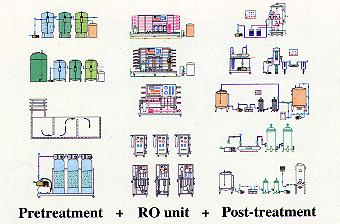

Pretreatment
*Automatic multimedia
filter*Automatic activated carbon filter*Automatic
softener*Automatic chemica l feeding unit*Cartridge
pre-filter*Package unit for dialysis: MF, UF,RO, ( 1
5,20,30,50 beds)
The second unit

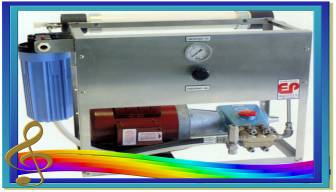

: SW- (SEA WATER-1500g ) desalinization host computer
MIDEL
PRODUCTION
R.O.
FEED
PRESSURE
AFTER 3YEARS(PSI)
DIMENSIONS(in/cm)
WEIGHT
(lb/kg)
INLET
(in)
ELEMENT
QUANTITY
AND
SIZE(inches)
DESIGNED
RECOVERY
%
MOTOR
GPD
LPD
Height
Length
Width
PHASE
HP
60Hz
50Hz
E-1500SW
1500
5678
885
18/46
50/127
24/61
275/125
3/4"
(4)
25
1
3
3
The third unit:

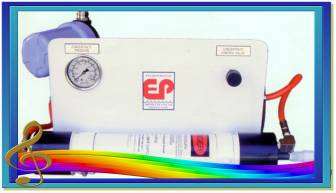

RO (RESVERMOSIS-1500g ) grows and
drinks the equipment +O3-15g/h sterilization host computer
Make of RO membranes and services
Make of RO membranes* DOW / Filmtec * Hydranautics *
Fluid systems* Membrane replacement
Post-treatment
*UF filtration unit*UV disinfecting unit*0.2 um MF
unit*Automatic nuclear grade mixed bed*Monitori ng unit of
water quality*Ozone disinfecting unit
Control
*Standard control panel*PLC*User-friendly interface
Custom made RO system
*RO system made to customer's
specifications or needs
Summarize: Must finish the equipment of three units , it is
the best sea water that grows the system of drinking. If there
is not first unit to strain in advance, the host computers of
unit second will be stopped seriously by the alga. The third
unit to bring 300 PPM down to 10 of TDS PPM can drink.
